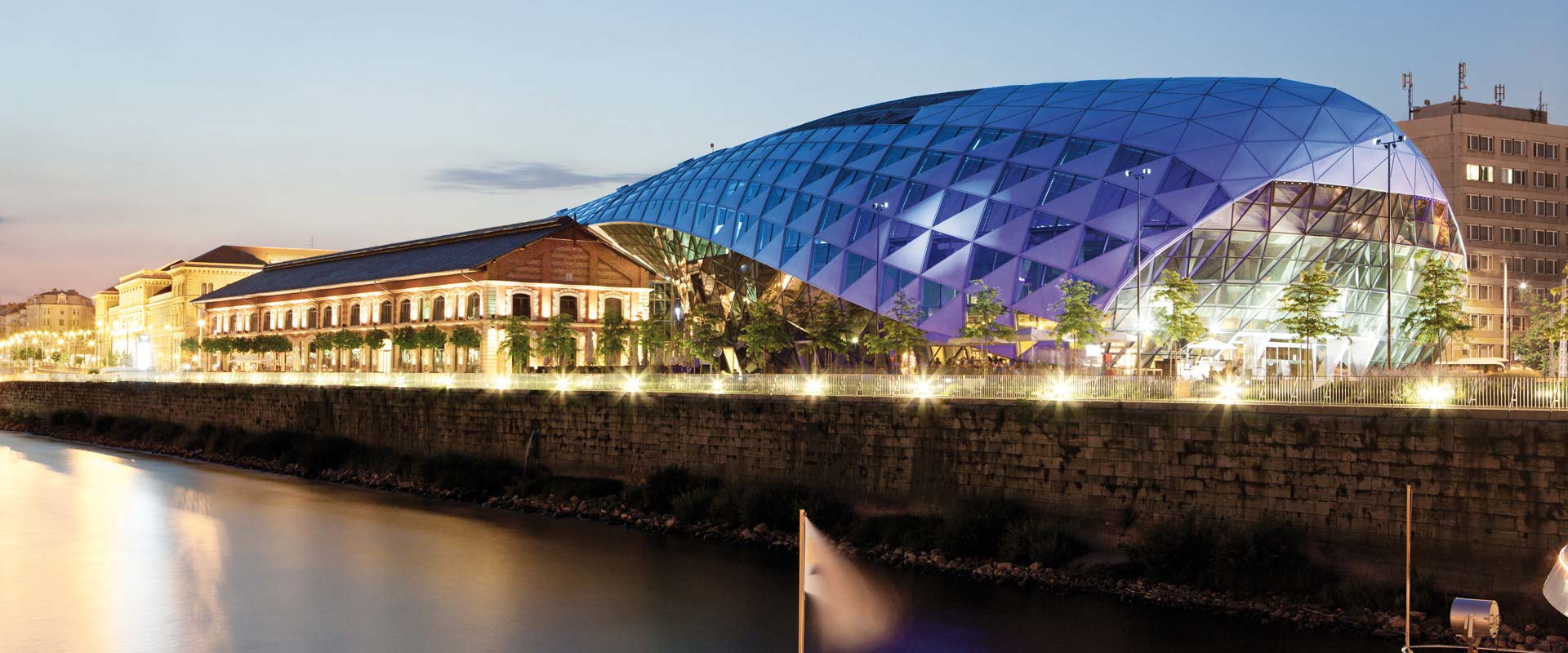

Balna Shopping Center


Bálna, Budapest


The Bálna (“Whale”) is a business, culture and gastronomic center in the heart of Budapest. It connects downtown Budapest with the tourism and restaurant district along the riverbank. Both its avant-garde exterior and its interior design allude to the form of a whale.

It is predominantly characterized by surfaces in steel, glass, bone-colored concrete and satin-gray aluminum. Sunlight falls abundantly through the glass roof onto the polished concrete and wooden floors, the terrazzo-patterned stairs and the chromium-steel escalators. Comfortable humidity levels are ensured by steam humidifiers from Condair.





x

Condair RS

Resistive steam humidifier

Condair RS



The Condair RS steam humidifiers boast patented limescale management which prevents permanent deposition of limescale on heater rods. Limestone crusts are successively detached and removed from the steam cylinder into the limescale collection vessel. Limestone management ensures extremely short waiting times and a long life.

The innovative control system fitted with a touch display ensures outstanding transparency of function and precise steam delivery. The units are the result of decades of experience and they define the state of the art in modern steam humidification.



Further information on the Condair RS









Flexible choice of water


A resistance heating system works independently of the conductivity of the humidifying water.
For this reason, Condair RS steam humidifiers are suitable for use both with demineralized water and drinking water.
When using demineralized water, maintenance is reduced to periodic function checks.

If steam humidifiers are to be operated with drinking water, then Condair RS steam humidifiers should
always be your first choice, because the patented limescale management system ensures a high degree
of reliability even when the water contains limestone. Flexible choice of water











A technical innovation that solves the limescale problem


Patented limescale management removes the separated minerals
from the steam cylinder during operation and automatically conveys them into the designated
limescale collecting vessel. Limescale deposits are thus continuously removed from the steam cylinder.

The pieces of limescale are collected in an
external limescale collecting vessel and can easily be emptied from there. Maintenance work is significantly reduced
and operational reliability is maximized. The patented limescale management system ensures
reduced maintenance times and long life of RS steam humidifiers.




Condair RS scale management
Condair RS scale management
Condair RS scale management










Touch Controller for precise control


The Condair Touch Controller allows viewing of all unit and process data.
Operating data can be called up in real time, and there is a comprehensive data history. The electronic control system
allows the steam output to be varied continuously between 0 and 100%; this means
accurate control and management of the steam delivery rate.

Precise regulation














Perfect connectivity


The RS series steam humidifier includes an interface for connection to current BMS systems
(Modbus and BACnet) as standard.


Connectivity to Modbus and BACnet











System layout
Resistive steam humidifier





System Design RS




PDF / Brochure: Condair RS resistance steam humidifier
